Connect Cloud Voice and Cloud Voice TA1600/2400/3200 FXS Gateway

This topic describes how to connect Cloud Voice and Cloud Voice TA1600/2400/3200 FXS gateway, so as to extend analog phones for the PBX.

Procedure

Step 1. Create an extension on Cloud Voice PBX

On Cloud Voice, create an extension for an FXS port on the gateway.

  1. Log in to PBX web portal, go to Extension and Trunk > Extension.
  2. Click Add to create an extension. In this example, create extension 1000.

  3. Click Save and Apply.

Step 2. Set up a VoIP Server on Cloud Voice TA1600/2400/3200 FXS gateway

On Cloud Voice TA1600/2400/3200 FXS gateway, set up Cloud Voice PBX as VoIP server.

  1. Log in to gateway web interface, go to Gateway > VoIP Settings > VoIP Server Settings, edit a VoIP Server.
  2. In the pop-up window, configure the following settings:

    • Server Name: Enter a name to help you identify the VoIP Server.
    • Type: Select SIP.
    • Transport: Select UDP.
    • Hostname/IP: Enter the domain name of your PBX and the SIP registration port.
    • Domain: Enter the domain name of your PBX.
    • Register Mode: Select Port Register.
  3. Click Save and Apply Changes.

Step 3. (Optional) Customize a Dial Pattern Template on Cloud Voice TA1600/2400/3200 FXS gateway

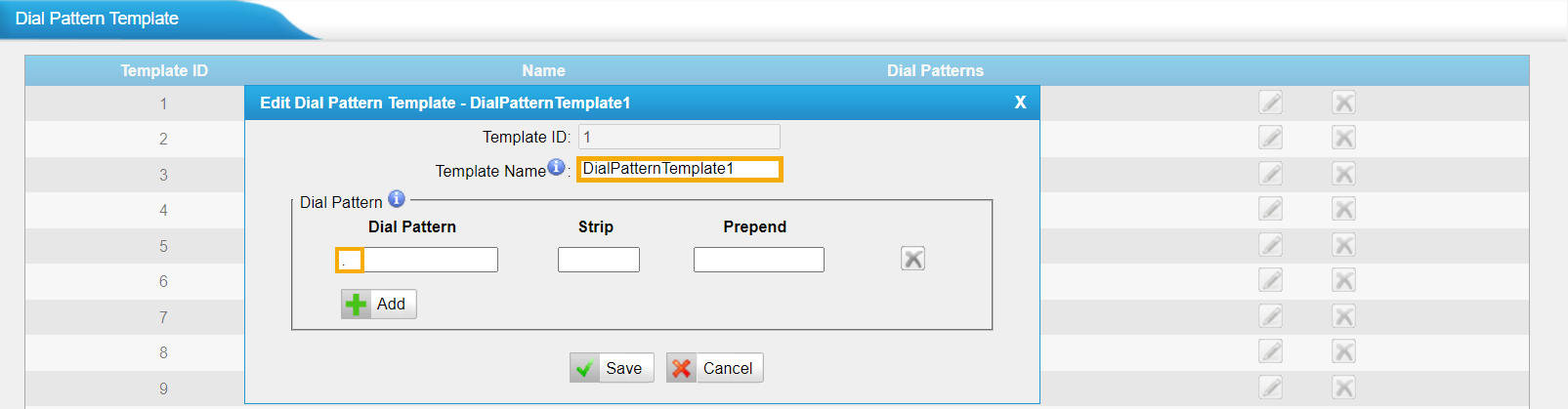

On Cloud Voice TA1600/2400/3200 FXS gateway, there are default Dial Pattern Templates with the dial pattern set as ., allowing users to dial any number out. If you want to customize the dial pattern, go to Gateway > VoIP Settings > Dial Pattern Template to edit a desired template.

In this example, we use "DialPatternTemplate1" and retain the default settings.

Step 4. Register the extension with FXS port on Cloud Voice TA1600/2400/3200 FXS gateway

On Cloud Voice TA1600/2400/3200 FXS gateway, register an FXS port as a PBX extension.

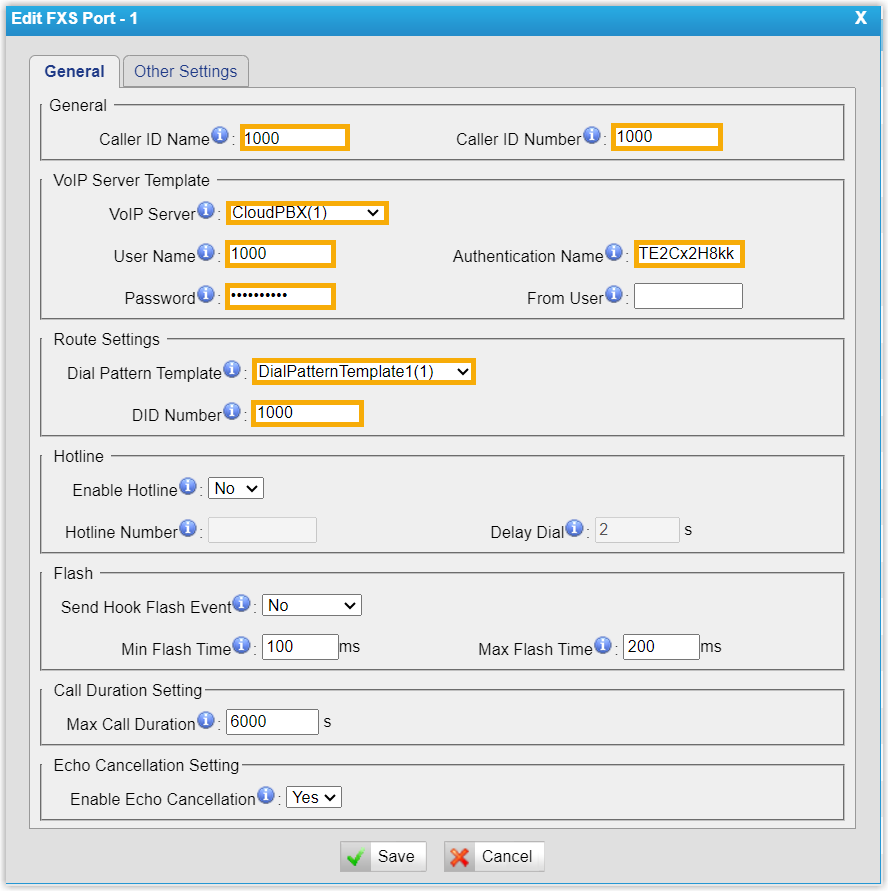

  1. On gateway web interface, go to Gateway > Port List > Port List, edit an FXS port.
  2. In the pop-up window, configure the following settings:

    • Caller ID Name: Enter a name to help you identify the FXS port.
    • Caller ID Number: Enter the extension number.
    • VoIP Server: Select the VoIP Server that you have configured in Step 2.
    • User Name: Enter the extension number.
    • Authentication Name: Enter the extension's registration name.
    • Password: Enter the extension's registration password.
    • Dial Pattern Template: Select the Dial Pattern Template that will applied to the FXS port.
    • DID Number: Enter the extension number.
  3. Click Save and Apply Changes.

Result

  • The extension is successfully registered with the FXS port. You can check the registration status on PBX web portal and gateway web interface.
    • On PBX web portal, go to Extension and Trunk > Extension to check the extension status. If the registration is successful, the extension status will display .

    • On gateway web interface, go to Status > System Status > FXS Port Status to check the FXS port status. If the registration is successful, the port status will display "OK".

  • Now the analog phone connected to the FXS port can be used to make and receive internal calls.
